NO.1 Diamond compact

Diamond compact, super-hard composite material, is composed of diamond and hard alloy matrix. Not only with high hardness, high wear resistance, corrosion resistance, high thermal conductivity, low coefficient of friction, other excellent performances and mechanical isotropic, but also has the strength and impact resistance of hard alloy, easy to weld, widely applied in high precision machining, oil and geological exploration, special materials, cutting, grinding and other fields.

NO.2 Popular composite materials

Drilling class diamond compact, with high impact toughness and thermal stability, the production of the drill blade can greatly improve the efficiency of the drill bit, is hard rock ideal drill bit, has been all over the domestic and foreign coal fields, oil exploration , geological exploration, water conservancy and hydropower, railway roads, tunnel construction and other industries. Machine tool class diamond compact, with high hardness, high wear resistance and high cutting accuracy, suitable for cutting high hardness alloy, wood, ceramics, rubber, plastic and other non-metallic, non-ferrous metals metals cutting and processing.

NO.3 Our products --CVD industrial synthetic diamond applied to compact

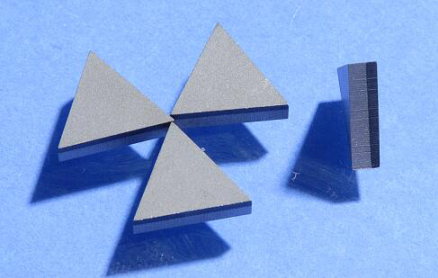

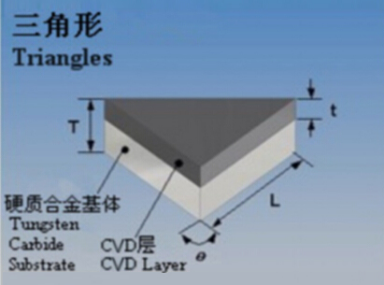

CVD industrial synthetic diamond compact is the diamond thick film without substrate with thickness of 1.0 mm or more, being cut into a certain shape of small pieces according to the need, and welded on the hard alloy to form composite blade. Because it has no metal bond, with low impurity content, purity of close to 100%, and hardness and thermal conductivity of higher than that of PCD, as well as smaller friction coefficient, better chemical stability, higher cutting speed can be used compared with the PCD cutting tool, therefore, CVD tool is considered to be the ideal tool material in non-ferrous materials processing industries, such as processing of aluminum, silicon aluminum alloy, copper, copper alloy, graphite and various reinforced glass fiber and carbon fiber structure materials, etc.

Features:

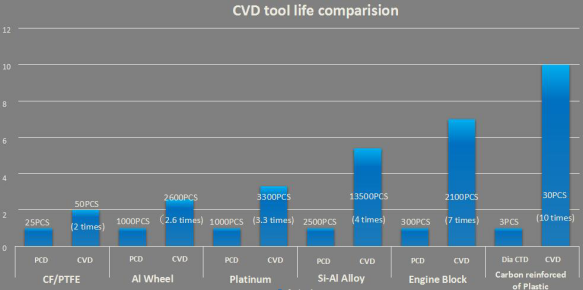

CVD diamond compact cutting tool has stable hardness and high wear resistance, and its service life is 2 to 10 times of that of PCD cutting tool.

Thickness of CVD diamond films can be made of 0.4 mm to 2.0 mm, it can be made into a variety of milling cutter.

CVD diamond film is polycrystalline pure diamond, which does not contain any adhesive or react with any material under 800 ℃ in air. Cutting tools made of it will be wear-resisting with sharp edge, very small cutting resistance, and high machining accuracy.

CVD diamond film has super high thermal conductivity, which greatly ensures the heat dissipation of tools and work pieces in the process of machining, so that the cutting temperature can be dropped to the lowest.

NO.4 The advantages of CVD industrial synthetic diamond compact

1.Longer lifespan

2.Do not contain any binder, good chemical stability

3.High thermal conductivity, good heat dissipation

4.High precision machining

5.High efficiency, high wear resistance

6.Easy to process
