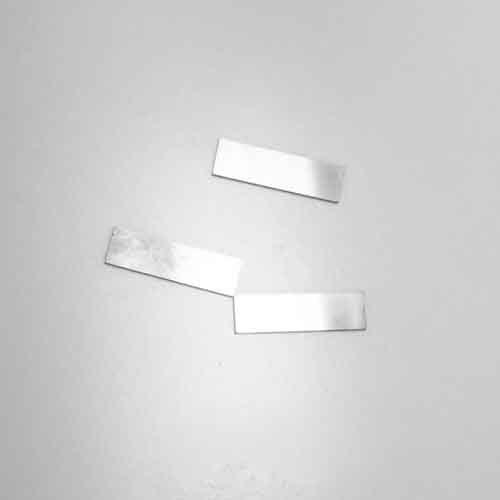

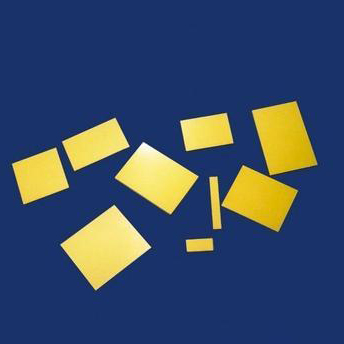

Chemical Vapor Deposition (CVD) diamond film is made by Chemical Vapor Deposition process. The thermal conductivity of the diamond at room temperature can be up to 22 W/(cm·k), which is 5 times of the thermal conductivity of copper, 6 times of the thermal conductivity of aluminum nitride, and more than 7 times of the beryllium oxide. It can transmit heat generated by electronic devices. Furthermore, the diamond is a typical insulator due to its resistivity is as high as 1016Ω. Therefore, the diamond is the most ideal material for thermal sink.
It mainly applies to the array of high-power diode, high-power light emitting diode (LED), radio frequency power transistor, high-power & high-frequency electronic (optoelectronic) devices, the cooling fin of multichip module large-scale integrated circuit, packaging of semiconductor, etc. The cooling capacity of integrated chip of laser equipment can be enhanced by 30% to 100% with CVD diamond cooling fin.
Performance parameters | |
Vickers hardness | 8000kg/mm2-1000kg/mm2 |
Density | 3.52cm³ |
Young modulus | 850GPa |
Thermal conductivity | 1200W/mk--2000W/mk |
Chemical stability | Non-soluble in all kinds of acid and alkali |
Breaking strength | 350Mpa |
Coefficient of thermal expansion | 1.0+/-0.1ppm/K(300K) 4.4+/-0.1ppm/K(1000K) |
Poisson's ratio | 0.1 |
Parallelism | ＜4＜µ/cm |
Thickness tolerance | +/-50µm |
Roughness of growth surface | ＜100nm Ra |
Roughness of nucleation surface | ＜30nm Ra |
Standard thickness | 300µm |
Available sizes:
Thickness of thick film:0.3-1.5mm
Degree after polishing:0.2-1.0mm
Main heat sink materials and performances | ||||
Material | Electrical properties | Thermal conductivity/【W/(m.K)】 | Coefficient of thermal expansion/(10-6K-1) | Density /(g/cm3) |
Diamond | Insulator | 2000 | 0.8-1.0 | 3.52 |
AL | Conductor | 247 | 23 | 22.7 |
SiC/Al | Conductor | 170-220 | 6.2-7.3 | 3.0 |
B/Al | Conductor | 145 | 13-15 | 22.7 |
Diamond/Al | Conductor | 375-670 | 5.07-12.5 | <3.5 |
Cu | Conductor | 398 | 17 | 8.9 |
Cu/Mo | Conductor | 170-210 | 5.7-6.0 | 9.4-10.01 |
Cu/W | Conductor | 150-205 | 6.5-8.3 | 15.7-17.6 |
Graphite/Cu | Conductor | 400 | 2.8-3.5 | 5.3 |
Diamond/Cu | Conductor | 400-600 | 6.0-6.5 | 5.0-5.5 |
Au | Conductor | 315 | 14 | 19.32 |
Mo | Conductor | 142 | 4.9 | 10.22 |
[W] | Conductor | 155 | 4.5 | 19.3 |
BeO | Insulator | 260 | 6 | 3 |
AlN | Insulator | 320 | 4.5 | 3.3 |
SiC | Insulator | 270 | 3.7 | 3.3 |
Special sizes can be customized.
